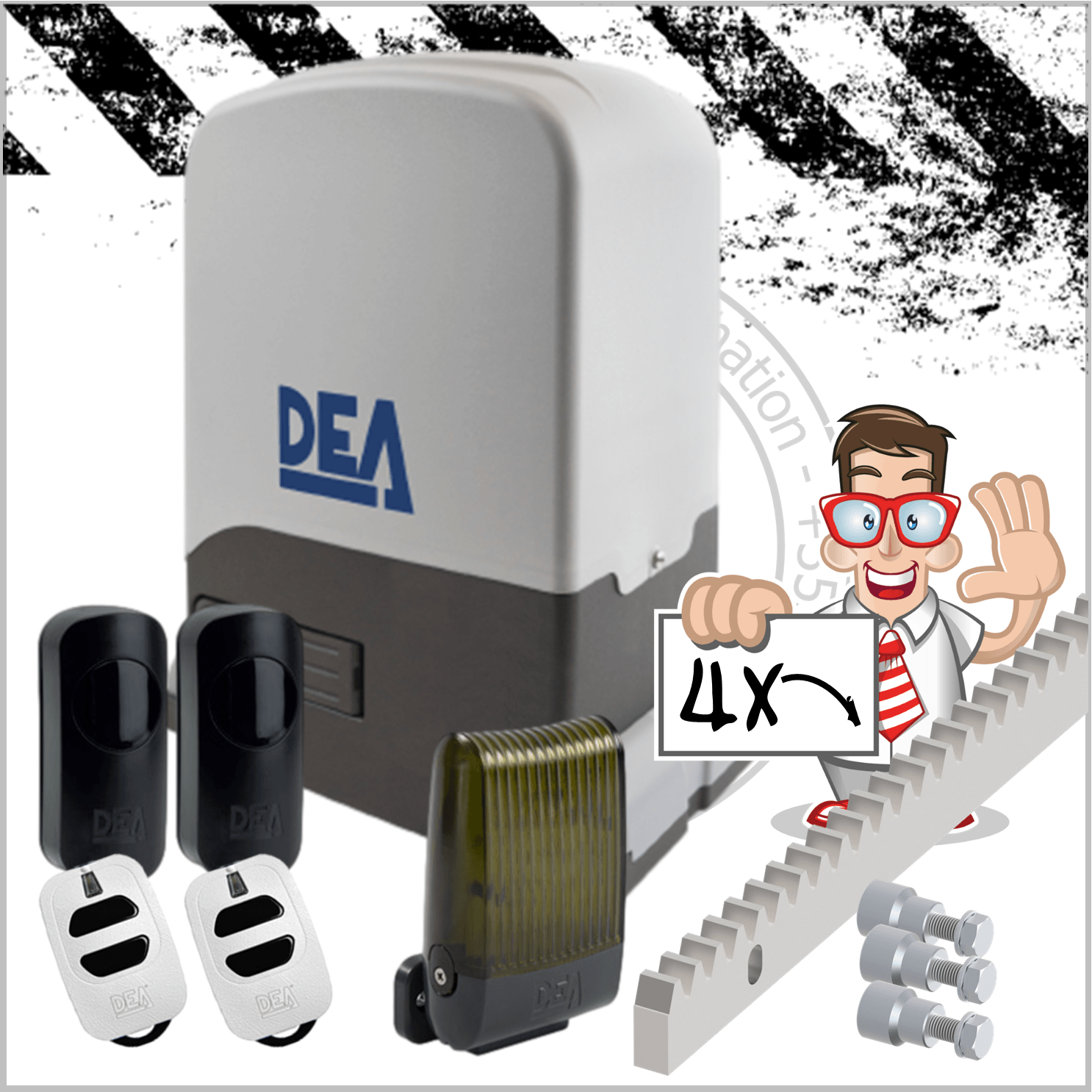

DEA REV sliding gate Kit

By DEA

€0.00

VAT of 21% Included In Price

No Price?? - contact us at gatekits@gmail.com for a great deal

Dea Logo gatekits.ie

REV Collective sliding gate operators

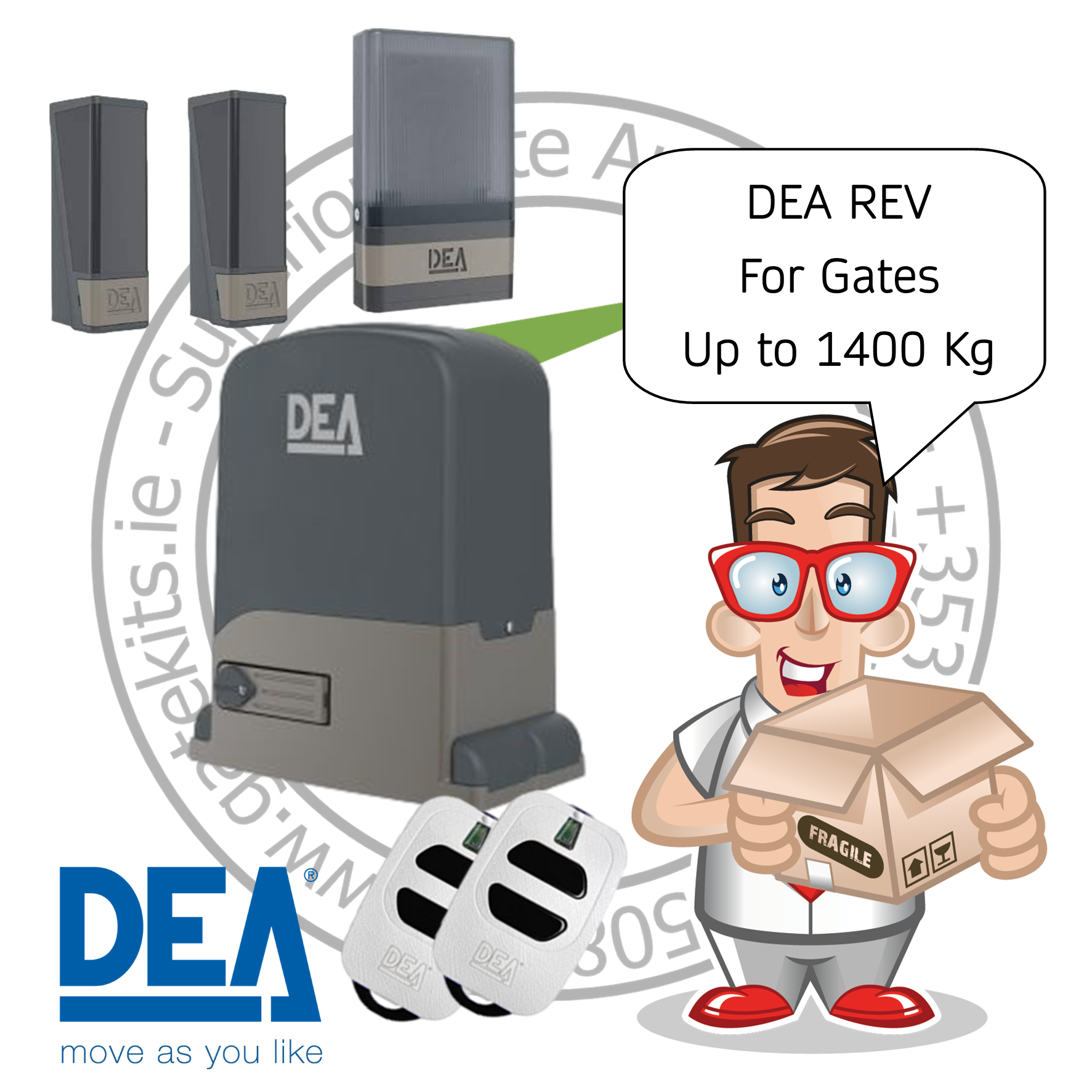

Up to 1400kg

REV is the range of collective sliding gate motors up to 1400 Kg, available in 230V and 24V.

REV operators are provided with built-in control panel with integrated 433 MHz receiver and electromechanic or magnetic limit switches. The operators equipped with control boards of DE@NET technology are completely safety and complies with European Norms EN12453 and EN12445 thanks to the presence of the encoder also in the 230V version.

Self-locking and not self-locking operators with electromagnetic brake in opening and closing.
Electro mechanic or magnetic limit switches
Internal fan to ensure an intensive use
230V versions with encoder for the position management and obstacles detection
Speed adjustment and slowdown in opening and closing
Soft start and soft stop for all versions
Oil bath gear motor for not self-locking versions

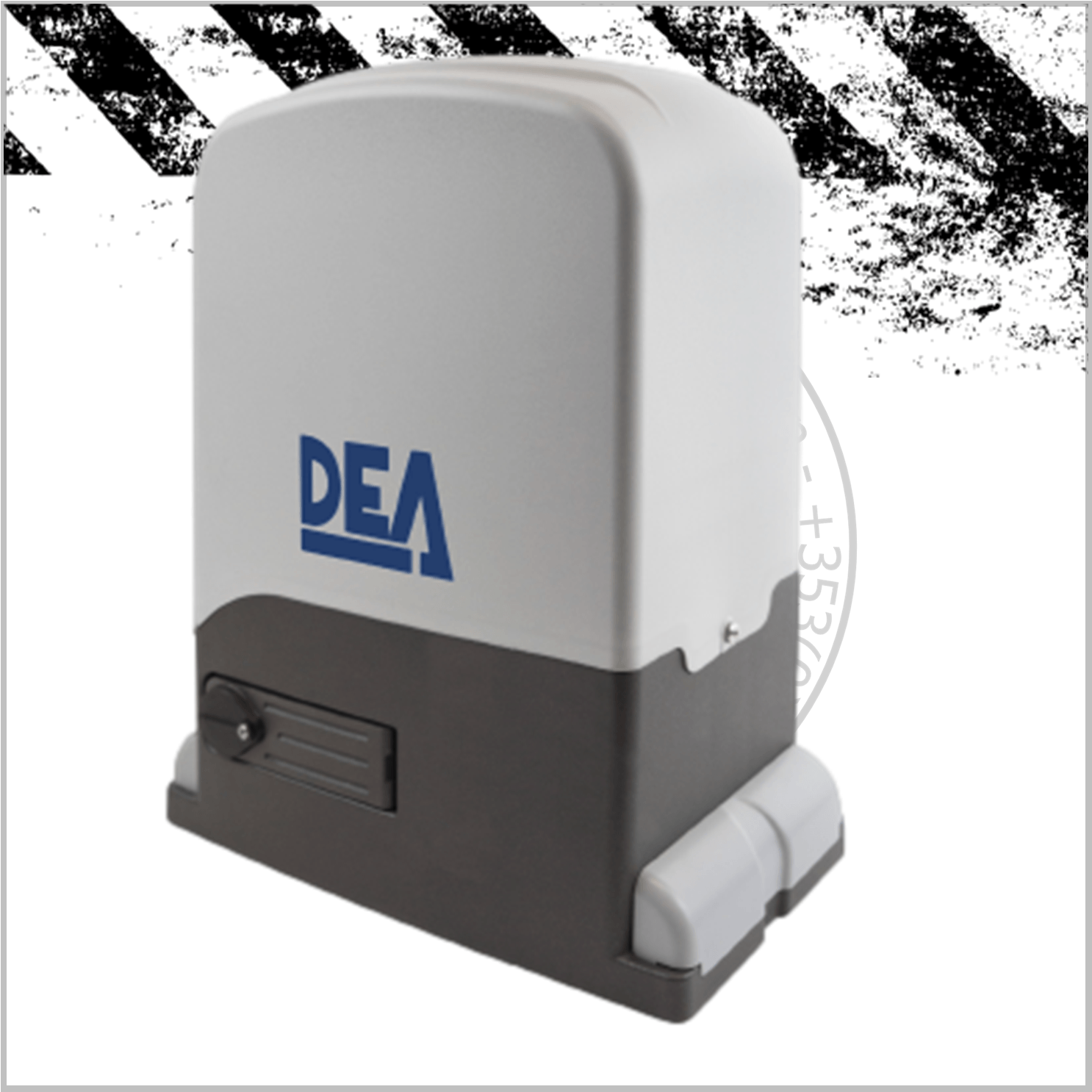

230V - REV220 : Code 616000 (1400KG)
Electromechanical self locking operator with built-in control board, limit switches and encoder.

  • For gates up to 1400 Kg
  • Built-in NET230N control board with 433 Mhz radio receiver integrated
  • Motor controlled by encoder for the position management and obstacle detection
  • Speed adjustment and slow-down in opening and closing
  • This product complies with the European Safety Norms EN12453 and EN12445.

24V - REV24/F : Code 616011 (1400KG)
Electromechanical self locking operator with built-in control board and limit switches.

  • For gates up to 1400 Kg
  • Built-in NET24N control board with 433 Mhz radio receiver integrated
  • Motor controlled by encoder for the position management and obstacle detection
  • Speed adjustment and slow-down in opening and closing
  • This product complies with the European Safety Norms EN12453 and EN12445.

Other Variations available on request - see link below
