ACT 5e PROX - Digital Keypad with Proximity

By ACT

€168.00

VAT of 23% Included In Price

No Price?? - contact us at gatekits@gmail.com for a great deal

ACT 10

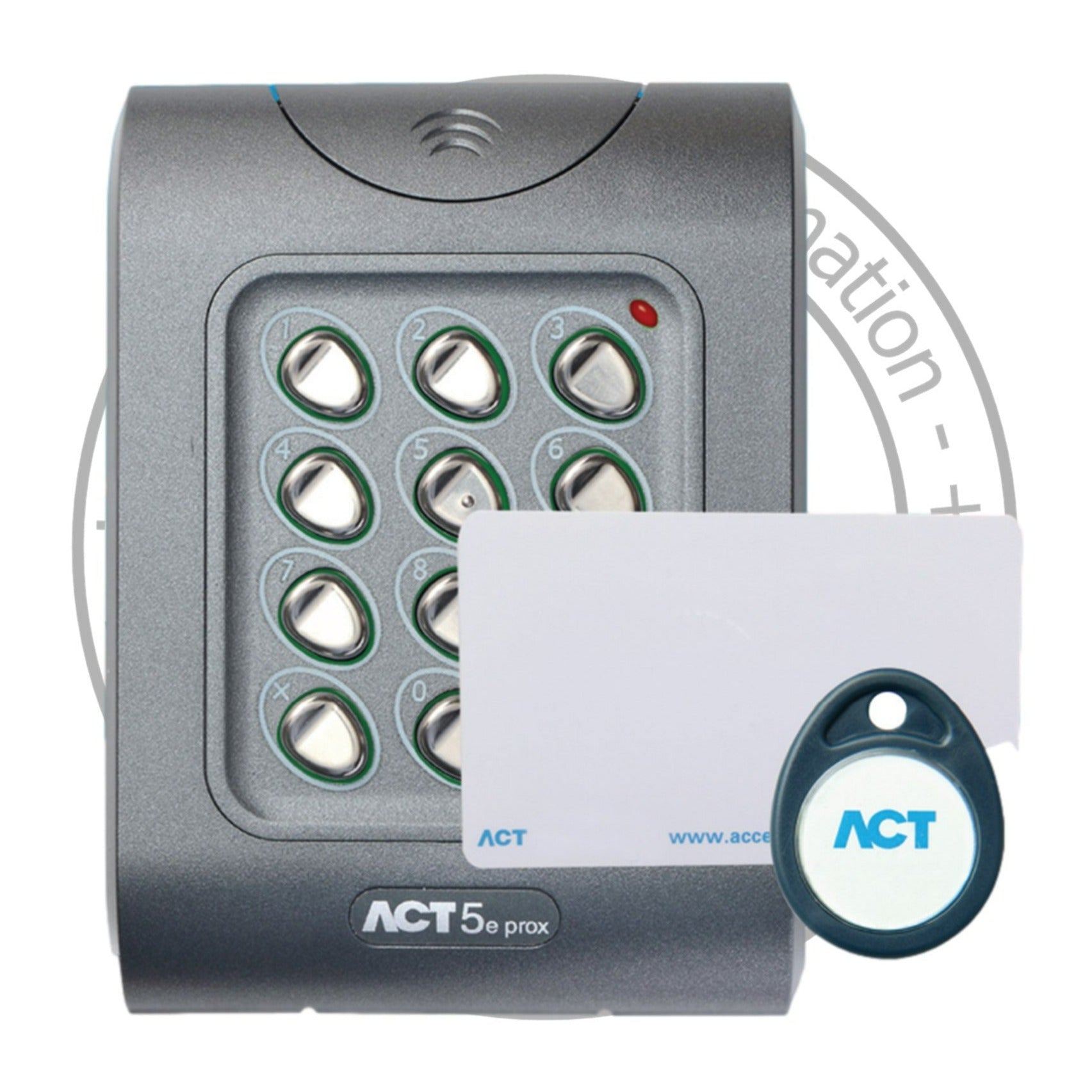

The ACT 5e prox digital keypad plus proximity is a simple to use and easy to install standalone access control product that supports the ACT RFID cards & fobs. Keypad backlighting enhances functionality at night or in poor light conditions.

Main Features - ACT 5e prox

  • Pin & proximity digital keypad
  • 50 user codes & 50 cards / fobs
  • push to exit input
  • incorrect code lockout
  • toggle mode
  • two relays
  • 5 amp, 30 Volt DC relay
  • polycarbonate housing with stainless steel keys
  • keypad backlighting
  • potted electronics
  • indoor / outdoor (IP67)
  • surface / flush mount options
  • mounts on to standard single gang electrical back box

Installation Guidelines - ACT 5e prox

  • Require operating voltage of 12 - 24 volts AC or DC
  • 5 amp lock output
  • Indoor / outdoor installation (IP67)
  • Operating Temperature: -10 to +50 C
  • Can be surface or flush mounted

Product Specification - ACT 5e prox

  • Operating Voltage: 12 - 24 Volts AC / DC
  • Current Consumption: 60 / 100 mA
  • Operating Temperature: - 10 to + 50 º C
  • Door Open Time: 0 - 255 seconds
  • Relay Contact Rating: 5A / 30 Volt
  • Weight: 225 gms
  • Dimensions (H x W x D, mm): 130 x 94 x 25 (surface); 128 x 94 x 18.5 (flush)
  • Mounting: surface / flush options
  • Installation: indoor / outdoor (IP67)
  • Construction: rugged polycarbonate housing, stainless steel keys, potted electronics

Prox fobs come in a bag of 10 at an extra cost.
